Air Cannon Installation Project at PT Indominco Mandiri
The company operates in East Kutai Regency, Kutai Kartanegara Regency, and Bontang City in East Kalimantan. A key facility is its Port Bontang area, which serves a strategic role in loading coal onto ships for distribution.
Problem Summary

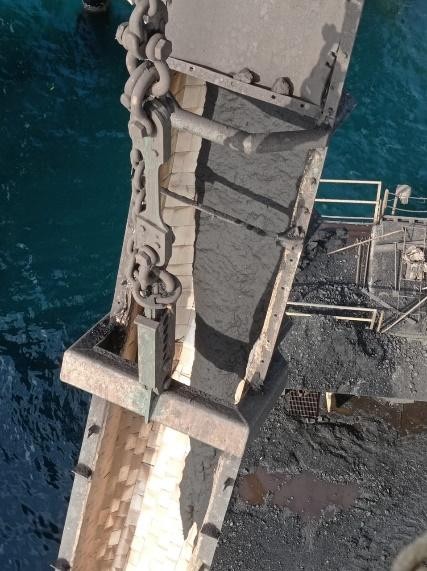

In the Banana Spoot C28 area at Port Bontang, IMM encountered a challenge in transferring coal onto ships. The sticky nature of low-grade coal led to material buildup (blockages) inside the chute.
This issue disrupted the coal’s smooth flow, which has a capacity of up to 3,700 tons per hour (TPH), which directly affects operational efficiency. To resolve this issue, IMM turned to PT Suprabakti Mandiri for an effective solution.
Project Execution

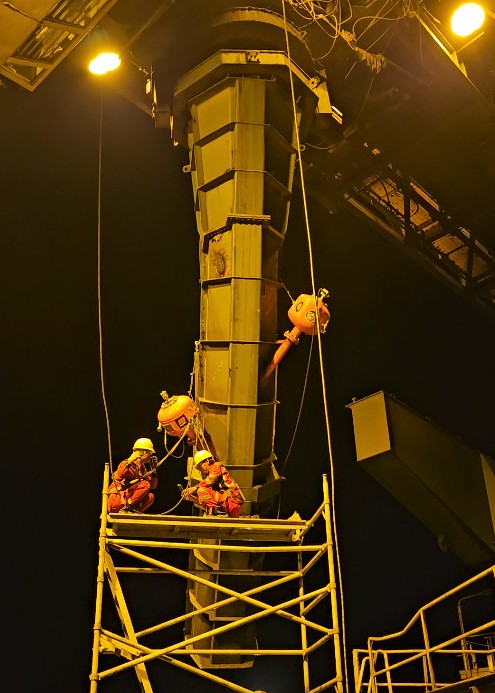

PT Suprabakti Mandiri carried out air cannon installationin of two units Martin Typhoon 70L at strategic points on the Banana Spoot C28 chute. The installation locations were selected based on a thorough analysis of critical points where material buildup originated. For maximum efficiency, blowpipe nozzles were used to clear accumulated material from the rounded corners of the chute's pathway.
The Banana Spoot's unique ability to rotate up to 360 degrees presented its own set of challenges. To address this, the hoses connecting the air supply to the air cannon units were manually attached, detached, and adjusted as needed during operation. The installation process was carried out meticulously to ensure the air cannons would function optimally in supporting a stable coal flow.
Final Outcomes

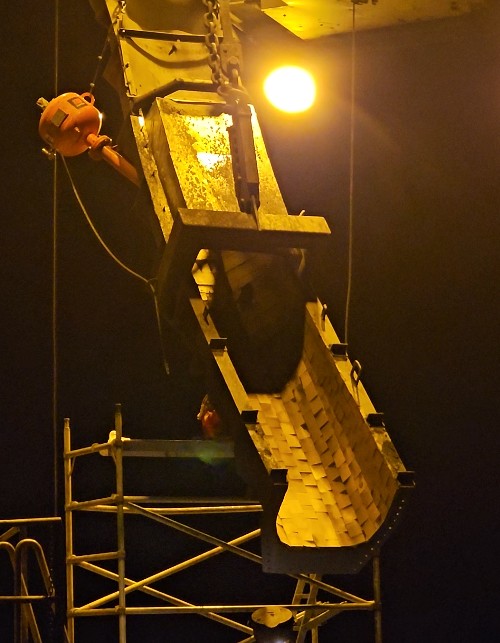

After the air cannon installation, the Martin Typhoon 70L successfully resolved the material blockage issue in the chute. Accumulated material was cleared, allowing a smooth flow of coal. The solution provided by PT Suprabakti Mandiri improved IMM’s coal transfer process, securing uninterrupted material transfer onto ships.
About the Client
PT Indominco Mandiri (IMM), a PT Indo Tambangraya Megah Tbk (ITM) subsidiary, specializes in coal mining, construction, and general trade. As one of Indonesia's leading coal mining companies, IMM has operated commercially since March 1997 with an open-pit mining system. The coal mined by IMM supplies both domestic and export markets.
| Location | Bontang, East Kalimantan |
|---|---|
| Category | Martin |
