A conveyor metal detector is madeto prevent conveyor belts from costly damage due to metal contamination. This equipment detects both ferrous and non-ferrous metals in diverse industries, including mining (hard rock, coal, and iron ore), quarrying, cement production, power stations, as well as process and extractive industries.

Metal detector equipped with sensitivity levels to accurately identify potential metal waste. You can easily attach the metal detector to conveyor systems without modifying or cutting belts. A well-calibrated sensor fine-tunes the detection sensitivity, providing precise metal detection.

Suprabrakti mandiri supplies Detec Industrial Conveyor Metal Detectors, manufactured by Transmission Supply and Service Company Pty. Ltd. (TSS), an Australian-owned and operated private company based in Melbourne’s industrial belt.

Detec Industrial Metal Detectors are widely used in mining and industrial applications worldwide. In addition, we also supply a complete range of Detec industrial metal detector parts and accessories to support the after-sales service.

The production team conducts strict quality control on Detec Industrial Metal Detectors and factory-tests them for at least 24 hours to ensure magnet reliability.  All Detec products come with a 12-month warranty, guaranteeing the quality of the equipment

HFE Conveyor Metal Detector

Detec HFE Industrial Metal Detectors deliver outstanding performance in safeguarding production machinery from damage caused by unwanted tramp metal, securing smooth and uninterrupted operations.

Features:

  • Easy to Install and Operate: Operators can seamlessly add these detectors to existing belt conveyors without cutting the belt and easily adjust their detection sensitivity using a calibrated dial.
  • Variety of Accessories Available: This includes belt splice/clip detectors, metal markers (such as pellet, bag, flag, chain, and spray), and rotary encoders
  • High-Quality Construction: Detec Metal Detectors undergo quality checks during production and are factory-tested for at least 24 hours to confirm the equipment is qualified for installation. Each unit comes with a 12-month warranty.
  • Custom Designs: Our designs include special painting, stainless steel construction, custom signaling, and remote operation, ensuring a perfect fit for the user’s requirements.
  • Australian Made: Detec designs and manufactures HFE Metal Detectors in Australia.

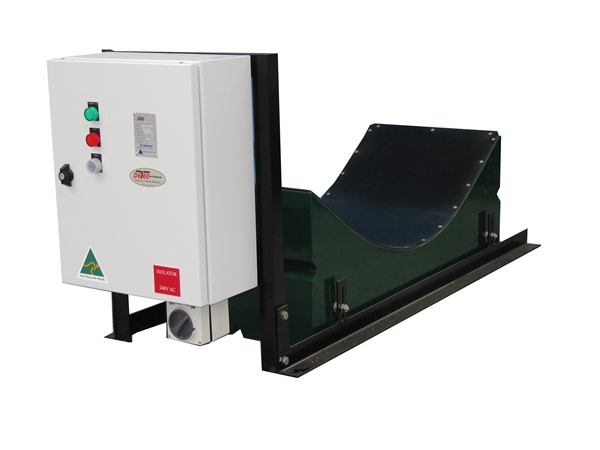

HFE Single Head

This is the single-head sensor iteration of the metal detector, compatible with belt widths up to 1000mm.

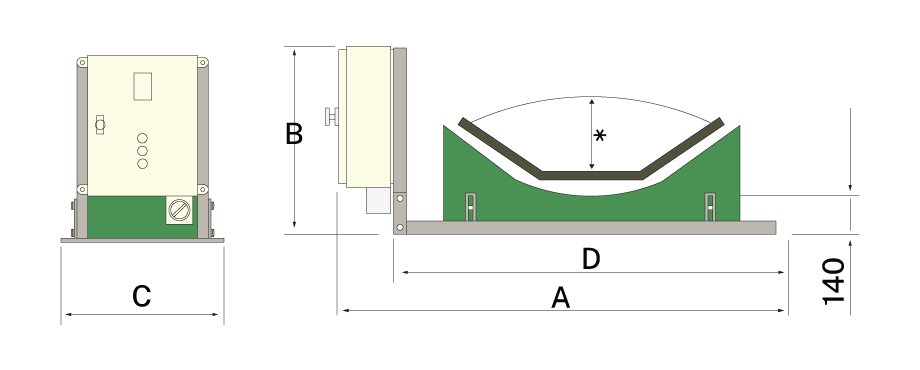

Dimension for the standard version

Belt (mm) 500 600 750 800 900 1000 1050 1200 1350 1400 For larger belt widths refer to Dual Head Detector Model
A 1000 1140 1290 1340 1440 1540 1590 1780 1930 1980
B 750 750 750 750 750 750 750 750 750 750
C 470 570 570 570 570 570 570 620 620 620
D 800 940 1090 1140 1240 1340 1390 1580 1730 1780

Shipping Mass (kg)

Mass 95 95 105 105 115 120 125 145 155 160

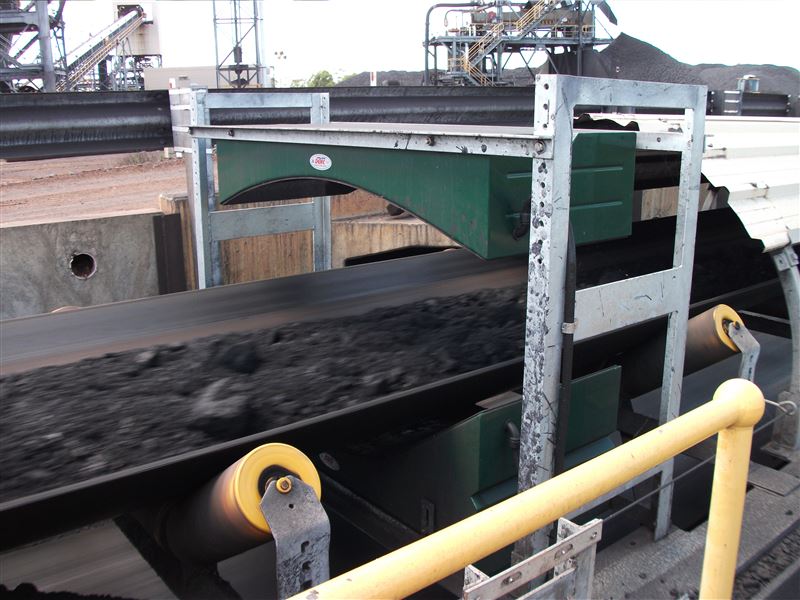

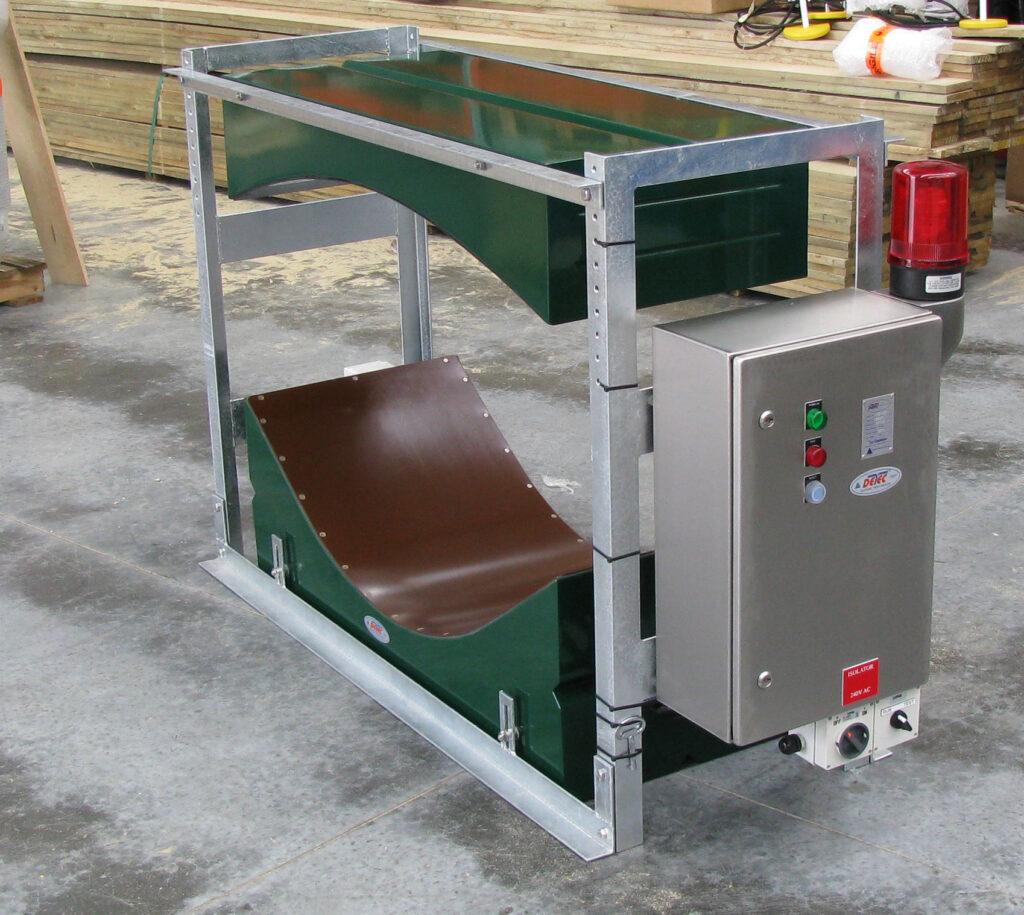

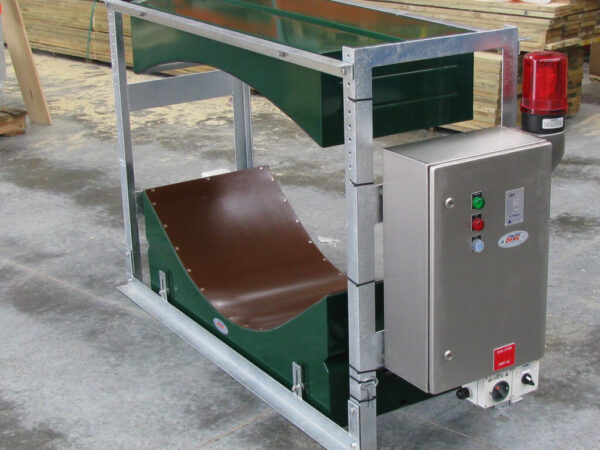

HFE Dual Head

The HFE Dual Head Metal Detector can be installed on rubber or steel cord conveyor belts. It comes in both standard and customizable options to accommodate specific requirements. This dual head metal detector is suitable for large large belt widths exceeding 1000mm.

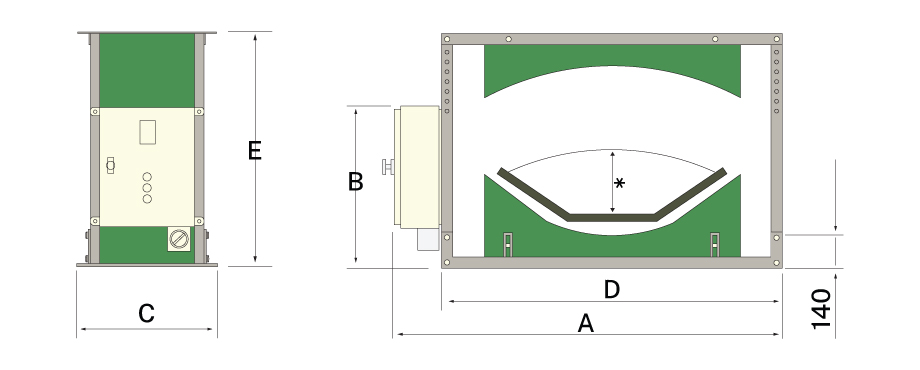

Dimension for the standard version

Belt (mm) 500 600 750 800 900 1000 1050 1200 1350 1400 1500 1600 1800
A 1000 1140 1290 1340 1440 1540 1590 1780 1930 1980 2080 2300 2500
B 750 750 750 750 750 750 750 750 750 750 750 750 750
C 470 570 570 570 570 570 570 620 620 620 620 620 620
D 800 940 1090 1140 1240 1340 1390 1580 1730 1780 1880 2100 2300
E × 30 590 640 845 860 895 920 940 1065 1115 1130 1160 1195 1255
E × 35 610 665 875 895 930 965 980 1115 1170 1185 1220 1260 1330
E × 45 655 725 950 970 1020 1065 1085 1235 1305 1325 1370 1420 1510
Conveyor belt widths above 1800mm are available through request

Shipping Mass (kg)

Mass 95 95 105 105 115 120 125 145 155 160 165 185 200
